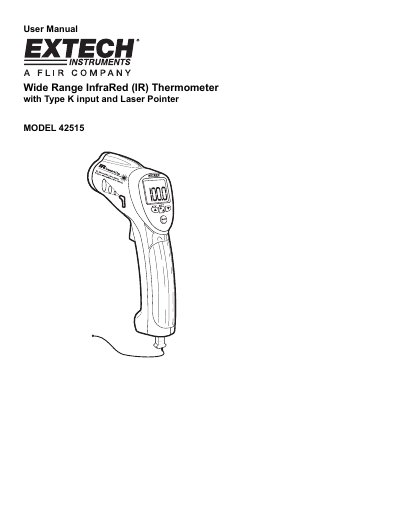

This manual introduces the use of the Model 42515 infrared thermometer, including safety precautions, meter appearance, infrared measurement, contact measurement, troubleshooting and other content.
The Extech Model 42515 is a wide-range infrared thermometer designed for non-contact temperature measurements up to 800°C (1472°F) and contact measurements via a Type K thermocouple up to 1370°C (2498°F). It features a built-in laser pointer, adjustable emissivity from 0.10 to 1.00, and an automatic emissivity adjustment function for surfaces above 100°C. The device includes a backlit LCD, alarm settings for high and low temperatures, and a field of view ratio of approximately 13:1.
| IR Measurement Range | -50.0 to 800.0°C (-58.0 to 1472.0°F) |
|---|---|
| IR Measurement Accuracy | ± 2.0%rdg or ±3°C/6°F whichever is greater |
| Emissivity Range | 0.10 to 1.00 adjustable |
| Field of View | Approx. 13:1 ratio |
| Laser Pointer Class | Class 2 laser < 1mW power |
| IR Spectral Response | 8 to 14 μm |
| Type K Thermocouple Range | -50.0 to 1370.0°C (-58.0 to 1999.9°F) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | 180g / 6.4 oz. |
The emissivity is adjustable from 0.10 to 1.00.
It calibrates the setting automatically when the measured surface temperature is above 100°C (212°F).
The thermometer will display dashes in place of a temperature reading.
The meter's field of view is approximately 13:1.
