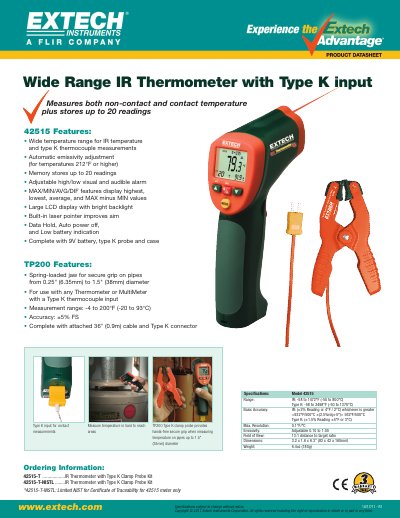

This document introduces the wide range infrared thermometer model 42515 produced by Extech Instruments Corporation. The instrument can measure both non-contact and contact temperatures, and can store up to 20 readings. It features automatic emissivity adjustment, adjustable high/low visual and audible alarms, MAX/MIN/AVG/DIF display, etc. The instrument is equipped with a large LCD display with backlight, built-in laser pointer, and data hold function. It also supports contact measurements using Type K probe.
The Extech 42515 is a wide range infrared thermometer with Type K thermocouple input that measures both non-contact and contact temperatures. It features automatic emissivity adjustment, memory storage for up to 20 readings, and adjustable high/low visual and audible alarms. The unit includes a large LCD display with a bright backlight and a built-in laser pointer for improved aiming.
| IR Temperature Range | -58 to 1472°F (-50 to 800°C) |
|---|---|
| Type K Temperature Range | -58 to 2498°F (-50 to 1370°C) |
| IR Basic Accuracy | ±2% Reading or 4°F/2°C |
| Type K Basic Accuracy | ±1.5% Reading ±5°F/3°C |
| Max Resolution | 0.1°F/°C |
| Emissivity | Adjustable 0.10 to 1.00 |
| Field of View | 13:1 distance to target ratio |
| Dimensions | 3.2x1.6x6.3" (82x42x160mm) |
| Weight | 6.4oz (180g) |
| Memory Storage | Stores up to 20 readings |
| Included Battery | 9V battery |
| Included Probe | Type K clamp probe |
The Type K input range is -58 to 2498°F (-50 to 1370°C).
Yes, it has a built-in laser pointer to improve aiming.
The emissivity is adjustable from 0.10 to 1.00.
The probe provides a secure grip on pipes from 0.25" (6.35mm) to 1.5" (38mm) diameter.
