EXTECH 42515 ......................IR Thermometer with Type K Input 42515-NIST ............42515 with NIST Certificate Manual

Extech 42515 IR Thermometer is a temperature meter that can measure non-contact and contact temperature with a maximum range of -58 to 1472 degrees Fahrenheit (-50 to 800 degrees Celsius), with a 4000 count backlit display, built-in laser pointer, data hold, auto power off and low battery indication.

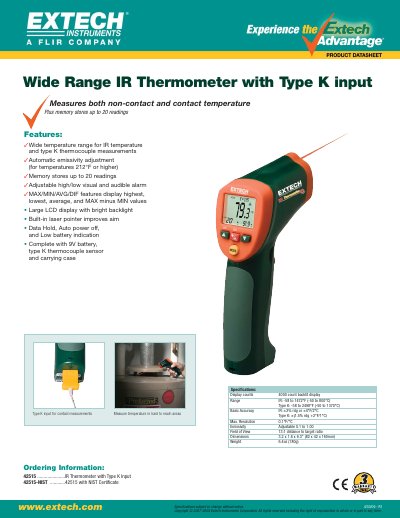

EXTECH 42515 ......................IR Thermometer with Type K Input 42515-NIST ............42515 with NIST Certificate Manual - cover page
Brand
EXTECH
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
191 KB
Published
01 August, 2012
Updated
30 September, 2023
MD5 checksum
D8DE8D9E8E07D8D8F2D24DD89AF7ADBE

About this manual

The Extech 42515 is a wide-range infrared thermometer that also supports contact temperature measurements via a Type K thermocouple input. It features a large backlit LCD display, a built-in laser pointer for aiming, and the ability to store up to 20 readings in memory.

What's inside

  • Features
  • Specifications
  • Ordering Information
  • Display
  • Measurements

Specifications

IR Temperature Range-58 to 1472°F (-50 to 800°C)
Type K Temperature Range-58 to 2498°F (-50 to 1370°C)
Basic Accuracy (IR)±2% rdg or ±4°F/2°C
Basic Accuracy (Type K)±(1.5% rdg +2°F/1°C)
Memory Capacity20 readings
Field of View13:1 distance to target ratio
Dimensions3.2 x 1.6 x 6.3" (82 x 42 x 160mm)
Weight6.4oz (180g)

Frequently asked questions

Does the Extech 42515 measure both infrared and contact temperatures?

Yes, it measures both non-contact and contact temperature.

What is the memory capacity of the Extech 42515?

The device can store up to 20 readings in its memory.

Does the Extech 42515 include a laser pointer?

Yes, it has a built-in laser pointer to improve aiming.
