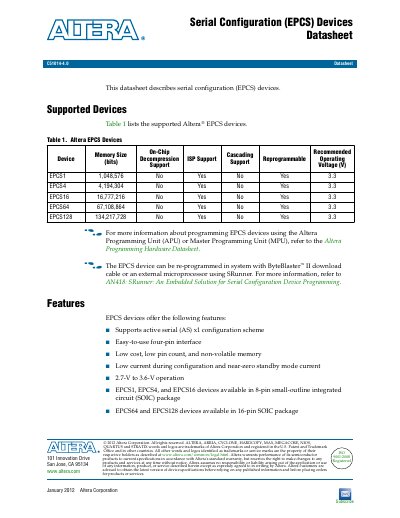

This document is the datasheet for the C51014-4.0 from Altera Corporation in January 2012. It describes the supported serial configuration (EPCS) devices and provides information about their features and characteristics.
The document provides a technical overview of the Altera Serial Configuration (EPCS) device family. These flash memory devices support an easy-to-use four-pin interface and are designed for systems requiring in-system reprogramming via tools like ByteBlaster II or SRunner software. The EPCS series includes various memory sizes, ranging from 1 Mbit to 128 Mbits, suitable for different FPGA configuration needs.
| Recommended Operating Voltage | 2.7-V to 3.6-V |
|---|---|
| EPCS1 Memory Size | 1,048,576 bits |
| EPCS128 Memory Size | 134,217,728 bits |
No, EPCS devices cannot be cascaded.
Compression typically reduces the configuration bitstream size by 35% to 55%.
