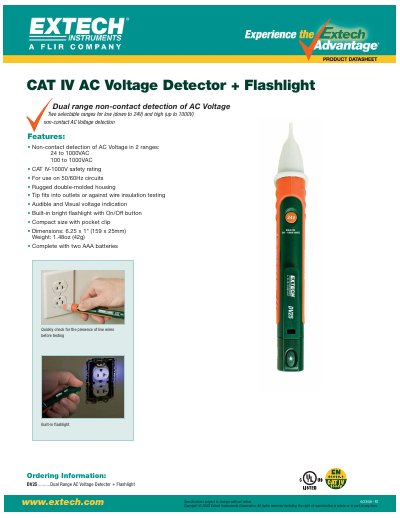

The Extech DV25 Dual Range AC Voltage Detector + Flashlight is a product from Extech that can detect AC voltage, including low voltage (down to 24V) and high voltage (up to 1000V). It has a rugged dual-molded housing, a built-in bright flashlight, and an audio and visual voltage indicator.
The EXTECH DV25 is a compact instrument designed for quickly checking the presence of live wires. It features dual selectable ranges for low (24 to 100VAC) and high (100 to 1000VAC) non-contact AC voltage detection, operating on 50/60Hz circuits.
The device includes a built-in bright flashlight with an On/Off button and provides both audible and visual indications for detected voltage. It is housed in a rugged double-molded case with a pocket clip and comes complete with two AAA batteries.
| Detection Range High | 100 to 1000VAC |
|---|---|
| Safety Rating | CAT IV-1000V |
| Frequency | 50/60Hz |
| Dimensions | 159 x 25mm |
| Weight | 42g |
The device detects non-contact AC Voltage in two selectable ranges: from 24 to 1000VAC and from 100 to 1000VAC.
The EXTECH DV25 has a CAT I/IV-1000V safety rating.
