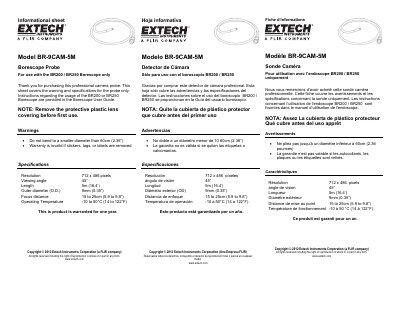

This document provides warning and specification information for the Model BR-9CAM-5M Borescope Probe. The probe is designed for use with the BR200 / BR250 Borescope and features high resolution, wide viewing angle, and operating temperature range.
This document is a multi-language informational sheet for the Extech BR-9CAM-5M Borescope Probe. It provides essential warnings and technical specifications for the probe component only. The text notes that usage instructions for the compatible BR200 or BR250 Borescope units are found in a separate Borescope User Guide.
The sheet includes specific warnings regarding the bending radius of the probe and warranty validity. It lists key technical data such as resolution, viewing angle, length, outer diameter, focus distance, and operating temperature range.
| Resolution | 712 x 486 pixels |
|---|---|
| Viewing angle | 45° |
| Length | 5m (16.4) |
| Outer diameter | 9mm (0.35") |
Do not bend the probe to a smaller diameter than 60cm (2.36").
The warranty becomes invalid if stickers, tags, or labels are removed.
This probe is for use with the BR200 or BR250 Borescope only.
