The PQxxxEH01Z series is a low power-loss voltage regulator with features such as low voltage operation, large output current, and low dissipation current. This series of products is widely used in peripheral equipment of personal computers and power supplies for various electronic equipment such as DVD players or STBs.

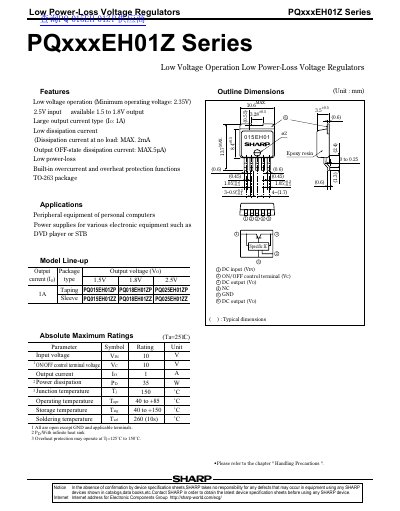

This document is a datasheet for the SHARP PQxxxEH01Z Series, which are low power-loss voltage regulators designed for low voltage operation with a minimum input of 2.35V. The series includes models with output voltages of 1.5V, 1.8V, and 2.5V, capable of delivering up to 1A of output current.
| Minimum operating voltage | 2.35V |
|---|---|
| Package type | TO-263 |
| Operating temperature range | -40 to +85 °C |
| Junction temperature rating | 150 °C |
| Power dissipation | 35 W |
The minimum operating voltage is 2.35V.
Yes, it has built-in overcurrent and overheat protection functions.
