This is a low power 1A output, general purpose low power voltage regulator, used for power supplies for various electronic equipment such as TVs, VCRs, CD stereos etc.

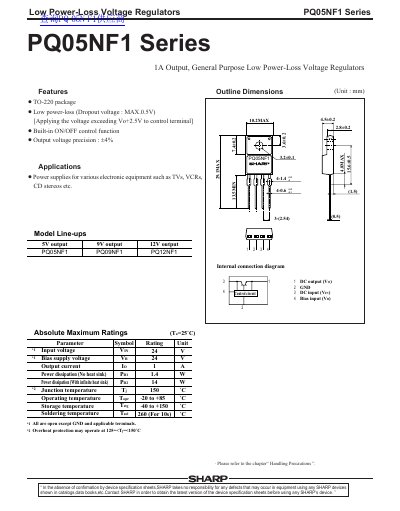

This document is a technical datasheet for the Sharp PQ05NF1 Series of general-purpose low power-loss voltage regulators. The series includes models with output voltages of 5V, 9V, and 12V (PQ05NF1, PQ09NF1, and PQ12NF1). These devices are housed in TO-220 packages and feature a maximum dropout voltage of 0.5V.
| Package Type | TO-220 package |
|---|---|
| Output Current | 1 A |
| Power Dissipation (No heat sink) | 1.4 W |
| Dropout Voltage | MAX.0.5V |
| Output Voltage Precision | +4% |
The PQ05NF1 Series includes models with 5V, 9V, and 12V outputs.
The device operates between -20°C and +85°C.
