This document is about the product specifications of SHARP CORPORATION, which introduces a voltage regulator model and its application areas, and provides precautions to be followed when using the product.

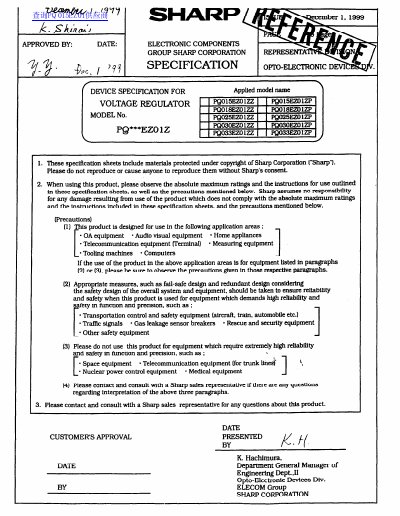

This document is a specification sheet for the Sharp PQ***EZO1Z series, which includes models such as PQ015EZ01Z and PQ033EZ01Z. These devices are designed for the stabilization of DC positive output voltage and include built-in ON/OFF, over current, and overheat protection functions. They are suitable for use in power supply circuits up to a current capacity of 1A.
| Input voltage | 2.35 to 10 V |
|---|---|
| Output current | 1 A |
| Power dissipation | 8 W |
| Junction temperature | 150 C |
| Operating temperature | -40 to +85 C |
| Ripple rejection | 45 to 60 dB |
| Quiescent current | 1 to 2 mA |
The product is designed for use in OA equipment, audio visual equipment, home appliances, telecommunication equipment, measuring equipment, tooling machines, and computers.
The product shall not contain CFCs, Halon, Carbon tetrachloride, or 1.1.1-Trichloroethane (Methylchloroform).
No, this product is not designed as electromagnetic and ionized-particle radiation resistant.
