This is a new type of low-power voltage regulator. It has TO-92 package, 100 mA output current, low power loss, small package size and is suitable for TVs, VCRs, air conditioners, DVD players, audio equipment, etc.

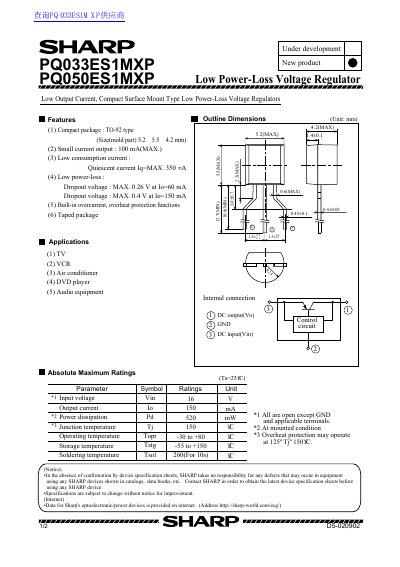

This document is a datasheet for the SHARP PQ033ES1MXP and PQ050ES1MXP Low Power-Loss Voltage Regulators. These devices are compact surface-mount type regulators available in a TO-92 package, designed for applications requiring low output current and low power loss.
| Package Type | TO-92 type |
|---|---|
| Package Size | 5.2 x 5.5 x 4.2 mm |
| Max Output Current | 100 mA |
| Max Quiescent Current | 350 µA |
| Max Dropout Voltage (60mA) | 0.26 V |
| Max Dropout Voltage (150mA) | 0.4 V |
| Protection Functions | Overcurrent, Overheat |
| Operating Temperature | -30 to +80 °C |
| Max Input Voltage | 16 V |
| PQ050ES1MXP Output Voltage | 5.0 V |
They are designed for use in TV, VCR, air conditioners, DVD players, and audio equipment.
Yes, the devices include built-in overcurrent and overheat protection functions.
The operating temperature range is from -30 to +80 °C.
