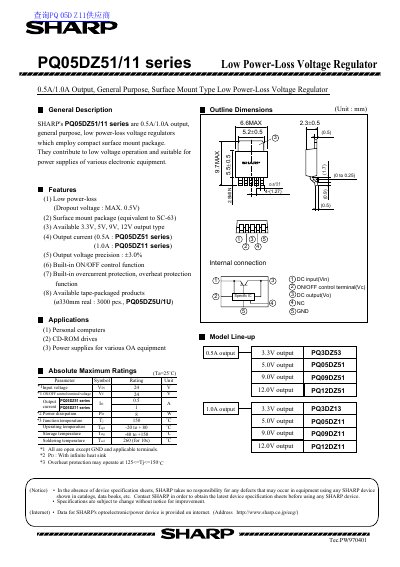

This document introduces the PQ05DZ51/11 series 0.5A/1.0A output, general purpose, surface mount type low power-loss voltage regulator. The series products use a compact surface mount package with low power consumption and are suitable for power supplies of various electronic equipment.
This document describes the SHARP PQ05DZ51/11 series, which are 0.5A and 1.0A output, general-purpose, low power-loss voltage regulators. These devices employ a compact surface mount package equivalent to SC-63 and are suitable for power supplies in various electronic equipment, including personal computers and CD-ROM drives.
| Output Current | 0.5A (PQ05DZ51 series) / 1.0A (PQ05DZ11 series) |
|---|---|
| Dropout Voltage | MAX. 0.5V |
| Output Voltage Precision | +3.0% |
| Operating Temperature | -20 to +80 °C |
| Power Dissipation | 8 W |
| Package Type | Surface mount (equivalent to SC-63) |
The series is available in 3.3V, 5V, 9V, and 12V output types.
Yes, it includes built-in overcurrent protection and overheat protection functions.
The absolute maximum rating for input voltage (Vin) is 24 V.
