PQ033ES3MXP PQ050ES3MXP is a low power loss voltage regulator from Sharp, with small current output, low power loss, built-in overcurrent, overheat protection functions.

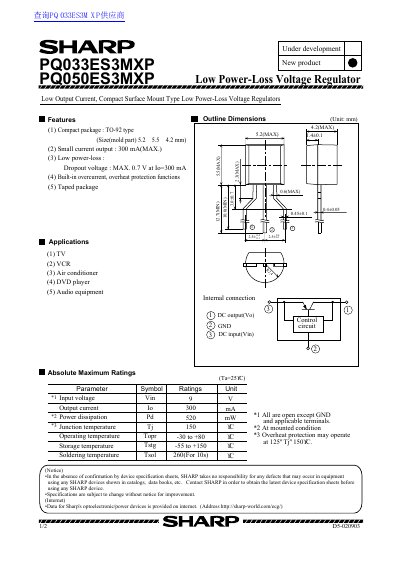

This document provides technical specifications for the Sharp PQ033ES3MXP and PQ050ES3MXP, which are low output current, compact surface mount type low power-loss voltage regulators. The devices feature a TO-92 package with dimensions of 5.2 x 5.5 x 4.2 mm.
| Package Type | TO-92 type |
|---|---|
| Dimensions (mold part) | 5.2 x 5.5 x 4.2 mm |
| Max Output Current | 300 mA |
| Max Dropout Voltage | 0.7 V at Io=300 mA |
| Output Voltage (PQ033ES3MXP) | 3.234 to 3.366 V |
| Output Voltage (PQ050ES3MXP) | 4.900 to 5.100 V |
| Max Power Dissipation | 520 mW |
They are designed for use in TV, VCR, air conditioner, DVD player, and audio equipment.
The maximum output current is rated at 300 mA.
The absolute maximum power dissipation is 520 mW.
