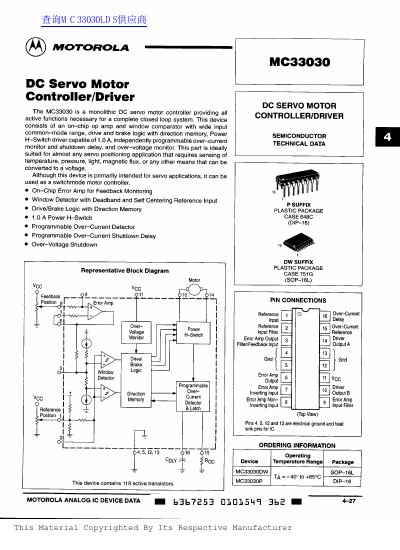

The Motorola MC33030 is a monolithic DC servo motor controller designed to provide all active functions necessary for a complete closed-loop system. It integrates an on-chip operational amplifier and a window comparator with a wide input common-mode range.
Key features include drive and brake logic with direction memory, a power H-Switch driver capable of 1.0 A, independently programmable over-current monitoring with shutdown delay, and over-voltage protection. The device is suitable for servo positioning applications involving temperature, pressure, light, or magnetic flux sensing.
| Drive Output Source Current | 1.0 A |
|---|---|
| Drive Output Sink Current | 4.0 A |
| Power Supply Voltage | -0.3 to 36 V |
| Operating Junction Temperature | +150 °C |
| Operating Ambient Temperature Range | -40 to +85 °C |
The maximum power supply voltage rating is 36 V.
Yes, the device consists of an on-chip op amp and window comparator.
The drive output source current is 1.0 A.
