The BB151 is a low-voltage variable capacitance diode manufactured by Philips Semiconductors. It features very low capacitance spread and is ideal for use in voltage controlled oscillators (VCO).

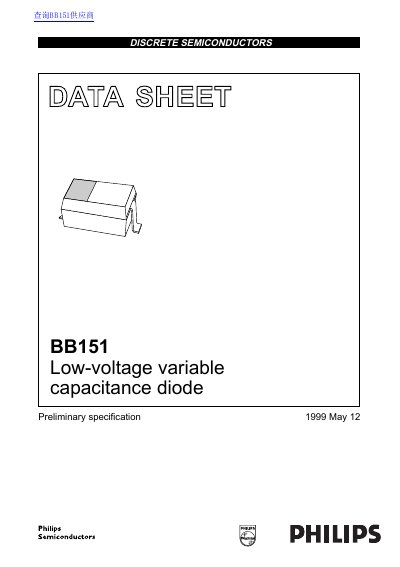

The document is a preliminary specification data sheet for the BB151, a variable capacitance diode fabricated in planar technology and encapsulated in a small SOD323 plastic SMD package. Key features highlighted include very low capacitance spread, excellent linearity, and very low series resistance, making it suitable for voltage controlled oscillators (VCO).
| Continuous reverse voltage | 10 V |
|---|---|
| Continuous forward current | 20 mA |
| Storage temperature | -55 +150 °C |
| Operating junction temperature | -55 +150 °C |
| Diode capacitance (typical) | 10.6 pF |
| Capacitance ratio | 1.53 |
| Package type | SOD323 |
The BB151 is intended for use in voltage controlled oscillators (VCO).
The maximum continuous reverse voltage is 10 V.
The maximum continuous forward current is 20 mA.
