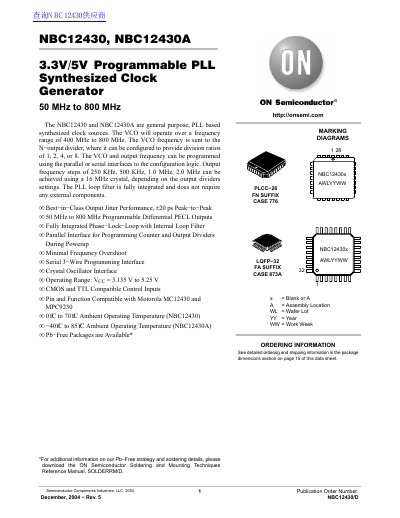

The NBC12430 and NBC12430A are 3.3V/5V programmable PLL synthesized clock generators with a frequency range of 50 MHz to 800 MHz.
The NBC12430 and NBC12430A are general purpose, PLL based synthesized clock sources designed to provide frequencies from 50 MHz to 800 MHz. The device features a fully integrated phase-lock-loop with an internal loop filter, eliminating the need for external components. It offers best-in-class output jitter performance with a peak-to-peak value of +20 ps.
| Output Frequency Range | 50 MHz to 800 MHz |
|---|---|
| VCO Frequency Range | 400 MHz to 800 MHz |
| Output Jitter Performance | +20 ps Peak-to-Peak |
| Operating Voltage (NBC12430) | 3.135 V to 5.25 V |
| Operating Temperature (NBC12430) | 0°C to 70°C |
| Operating Temperature (NBC12430A) | -40°C to 85°C |
| Maximum Output Current | 50 mA |
The device provides programmable differential PECL outputs ranging from 50 MHz to 800 MHz.
No, the PLL loop filter is fully integrated and does not require any external components.
The NBC12430 operates from 0°C to 70°C, while the NBC12430A operates from -40°C to 85°C.
