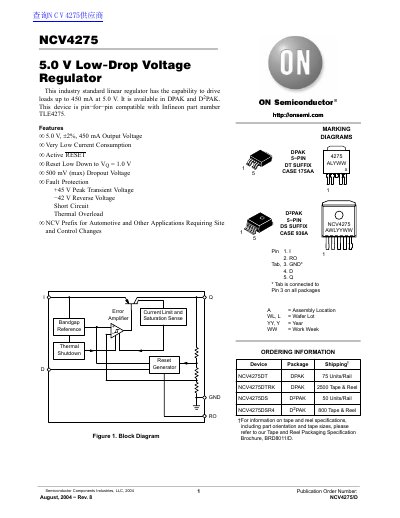

The NCV4275 is a 5.0 V low-dropout voltage regulator that can drive loads up to 450mA at 5.0 V. It is available in DPAK and D2PAK packages. This device is pin-for-pin compatible with Infineon's part number TLE4275.
The document describes the NCV4275, an industry-standard linear voltage regulator designed for automotive and other applications requiring site and control changes. It provides a 5.0V output at currents up to 450 mA and is available in DPAK and D2PAK packages.
| Output Voltage | 5.0 V (typ) |
|---|---|
| Output Current Limitation | 450 mA (typ) |
| Dropout Voltage | 500 mV (max) |
| Quiescent Current | 1.0 mA (typ) at Iq = 0 |
| Input Voltage Range | -42 V to +45 V (DC) |
The device can drive loads up to 450 mA.
The typical dropout voltage is 250 mV at this current level.
Stability is guaranteed if the output capacitor is greater than 22 uF.
