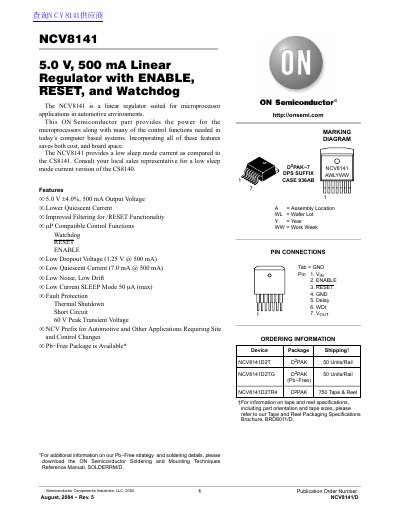

The NCV8141 is a linear regulator suited for microprocessor applications in automotive environments. This ON Semiconductor part provides the power for the microprocessors along with many of the control functions needed in today’s computer based systems. Incorporating all of these features saves both cost, and board space. The NCV8141 provides a low sleep mode current as compared to the CS8141.
The NCV8141 is a 5.0 V linear regulator designed for microprocessor applications in automotive environments. It integrates power supply regulation with control functions such as ENABLE, RESET, and a Watchdog timer to save cost and board space.
Key features include a low dropout voltage of 1.25 V at 500 mA, low quiescent current of 7.0 mA, and a sleep mode current as low as 50 pA. The device provides fault protection against thermal shutdown, short circuits, and overvoltage transients up to 60 V peak.
| Output Voltage | 5.0 V (+4.0%) |
|---|---|
| Maximum Output Current | 500 mA |
| Dropout Voltage (Typ) | 1.25 V @ 500 mA |
| Quiescent Current (Active Mode, Typ) | 7.0 mA @ 500 mA |
| Sleep Mode Current (Max) | 50 pA |
| Peak Transient Voltage | 60 V |
| Input Operating Range | -0.5 to 26 V |
| Junction Temperature Range | -40 to +150 °C |
The typical dropout voltage is 1.25 V at an output current of 500 mA.
The device provides ENABLE, RESET, and Watchdog control functions for microprocessor applications.
Yes, the datasheet notes that a Pb-Free Package is available.
