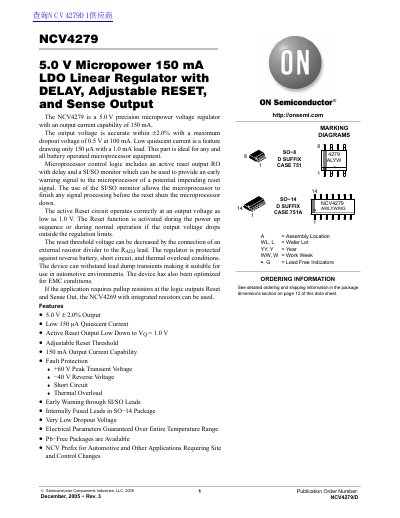

The NCV4279 is a 5.0V precision micropower voltage regulator with an output current capability of 150mA. The output voltage is accurate within ±2.0% with a maximum dropout voltage of 0.5V at 100mA. Low quiescent current is a feature drawing only 150uA with a 1.0mA load. This part is ideal for any and all battery operated microprocessor equipment. Microprocessor control logic includes an active reset output (RO) with delay and a SI/SO monitor which can be used to provide an early warning signal to the microprocessor of a potential impending reset signal. The use of the SI/SO monitor allows the microprocessor to finish any signal processing before the reset shuts the microprocessor down. The active Reset circuit operates correctly at an output voltage as low as 1.0V. The Reset function is activated during the power up sequence or during normal operation if the output voltage drops outside the regulation limits. The reset threshold voltage can be decreased by the connection of an external resistor divider to the RADJ lead. The regulator is protected against reverse battery, short circuit, and thermal overload conditions. The device can withstand load dump transients making it suitable for use in automotive environments. The device has also been optimized for EMC cond
The NCV4279 is a precision 5.0 V voltage regulator designed for battery-operated microprocessor equipment in automotive environments. It features an active reset output with delay, a SI/SO monitor for early warning signals, and protection against reverse battery, short circuits, and thermal overload.
| Output Voltage | 5.0 V +/- 2.0% |
|---|---|
| Quiescent Current | 150 uA at 1 mA load |
| Output Current Capability | 150 mA |
| Dropout Voltage | Max 0.5 V at 100 mA |
| Input Peak Transient Voltage | +60 V |
| Reverse Voltage | -40 V |
The output voltage is accurate within +/- 2.0%.
Yes, the NCV prefix indicates it is optimized for automotive and other applications requiring site and control changes.
