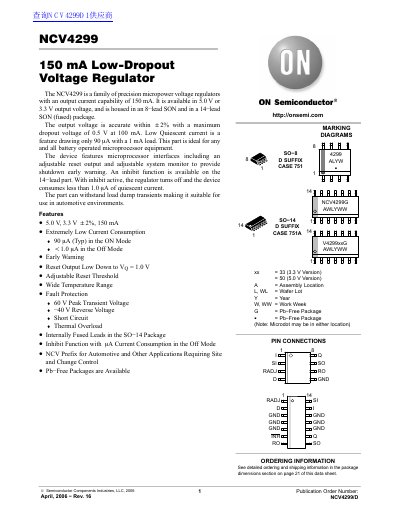

The NCV4299 is a family of precision micropower voltage regulators with an output current capability of 150 mA. It is available in 5.0 V or 3.3 V output voltage, and is housed in an 8−lead SON and in a 14−lead SON (fused) package. The output voltage is accurate within ±2% with a maximum dropout voltage of 0.5 V at 100 mA. Low Quiescent current is a feature drawing only 90 μA with a 1 mA load. This part is ideal for any and all battery operated microprocessor equipment. The device features microprocessor interfaces including an adjustable reset output and adjustable system monitor to provide shutdown early warning. An inhibit function is available on the 14−lead part. With inhibit active, the regulator turns off and the device consumes less than 1.0 μA of quiescent current. The part can withstand load dump transients making it suitable for use in automotive environments.
The NCV4299 is a family of precision micropower voltage regulators with an output current capability of 150 mA. It is available in 5.0 V or 3.3 V output voltage and is housed in an 8-lead SON and a 14-lead SON (fused) package. The output voltage is accurate within +2% with a maximum dropout voltage of 0.5 V at 100 mA.
| Output Current | 150 mA |
|---|---|
| Output Voltage Options | 5.0 V or 3.3 V |
| Output Voltage Accuracy | +2% |
| Maximum Dropout Voltage | 0.5 V |
| Quiescent Current (Typ) | 90 uA |
| Peak Transient Voltage | 60 V |
| Reverse Voltage | 40 V |
| Operating Temperature Range | -40 to 150 C |
The NCV4299 has an output current capability of 150 mA.
Yes, the part can withstand load dump transients making it suitable for use in automotive environments.
The maximum dropout voltage is 0.5 V at 100 mA.
Yes, an inhibit function is available on the 14-lead part to turn off the regulator.
