The NCV7601 is a quad driver from ONSEMI. It is suitable for a variety of loads. The device supports TTL/DTL/CMOS compatible inputs, features NAND logic and common enable, has a maximum working voltage of 60V, and typical applications include body and drivetrain electronics, incandescent lamps/LED loads, solenoid/relay/inductor loads, heater/resistor loads, stepper/DC motor loads.

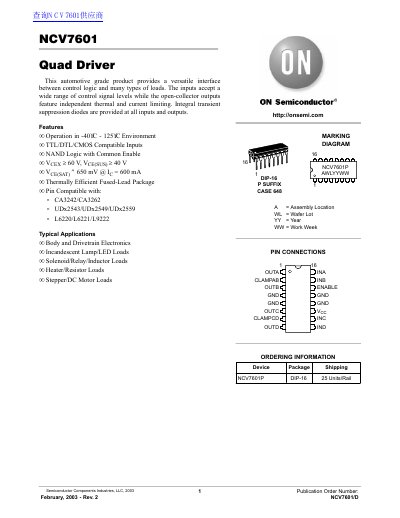

The NCV7601 Quad Driver is an automotive-grade product designed to provide a versatile interface between control logic and various types of loads. It features TTL, DTL, and CMOS compatible inputs, NAND logic with a common enable, and open-collector outputs with independent thermal and current limiting. Integral transient suppression diodes are provided at all inputs and outputs to protect against voltage spikes.
| Operating Temperature Range | -40 °C - 125°C |
|---|---|
| Supply Voltage (VCC) | 4.0 V to 5.5 V |
| Output Saturation Voltage | ≤ 650 mV |
| Sustaining Voltage (VCE(SUS)) | ≥ 40 V |
| Package Type | DIP-16 |
The device is designed to operate in an environment ranging from -40 °C to 125°C.
Yes, integral transient suppression diodes are provided at all inputs and outputs.
