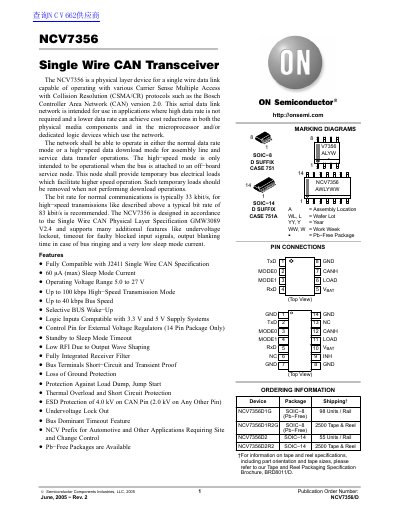

This data sheet provides information about the NCV7356 single wire CAN transceiver, including a description, specifications, and application examples.
The NCV7356 is a physical layer device designed for single-wire data links compatible with Carrier Sense Multiple Access with Collision Resolution (CSMA/CR) protocols, such as the Bosch Controller Area Network version 2.0. It operates in normal data rate mode or high-speed download mode and features undervoltage lockout, timeout for faulty signals, output blanking, and low sleep current.
| Supply Voltage Range (Normal Operation) | 5.0 to 27 V |
|---|---|
| Sleep Mode Current (Max) | 60 µA |
| High-Speed Transmission Rate | Up to 100 kbps |
| Bus Speed (Normal) | Up to 40 kbps |
| ESD Protection on CAN Pin | 4.0 kV |
| Operating Temperature Range | -55 to +150 °C (Storage) |
It is fully compatible with J2411 Single Wire CAN Specification and supports CSMA/CR protocols like Bosch Controller Area Network version 2.0.
The typical bit rate for normal communications is 33 kbit/s.
A typical bit rate of 83 kbit/s is recommended for high-speed transmissions.
The operating voltage range is 5.0 to 27 V.
