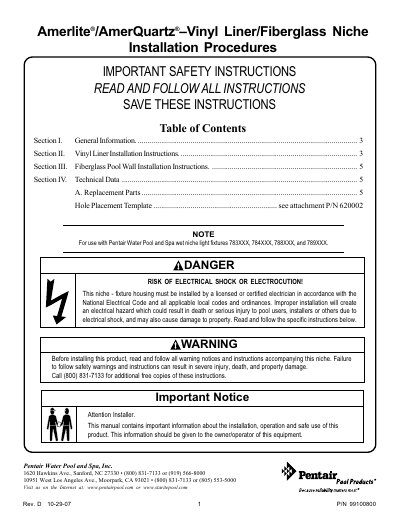

This manual contains detailed information about the installation procedure of Amerlite®/AmerQuartz®-Vinyl Liner/Fiberglass Niche
This manual provides installation instructions for Pentair Amerlite and AmerQuartz niche fixture housings designed for use with Pentair Water Pool and Spa wet niche light fixtures. It covers safety requirements, including the need for installation by a licensed electrician, and specifies compliance with the National Electrical Code.
| Compatible Fixtures | Pentair Water Pool and Spa wet niche light fixtures 783XXX, 784XXX, 788XXX, and 789XXX |
|---|---|
| Panel Hole Diameter (Min) | 10-5/8 inches |
| Panel Hole Diameter (Max) | 10-7/8 inches |
| Ground Connector Size | NO. 8 AWG |
| Lens Depth Requirement | at least 18 inches below the surface of the water |
This niche must be installed by a licensed or certified electrician in accordance with the National Electrical Code.
The top edge of the underwater light's lens must be at least 18 inches below the surface of the water.
No, under no circumstances should lights be replaced by splicing wire under water or behind the niche.
