This document is Sta-Rite Pool/Spa Group's product connection manual, which mainly introduces the connection methods of products, including main bundle, incoming power bundle, ignition control module plug bundle, blower motor plug bundle and so on.

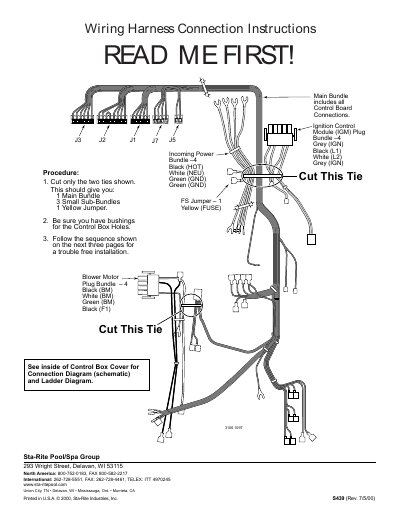

This document provides wiring harness connection instructions for the Sta-Rite Pool/Spa Group control system. It details how to cut ties on the Main Bundle to separate the Control Board Connections from the Ignition Control Module (IGM) Plug Bundle. The guide specifies connecting incoming power, ground, and various components like the blower motor and igniter.
This heater control system uses both 110 volt AC and 24 volt AC.
Only trained, qualified service technicians should attempt to service, repair, or rewire the electrical system.
