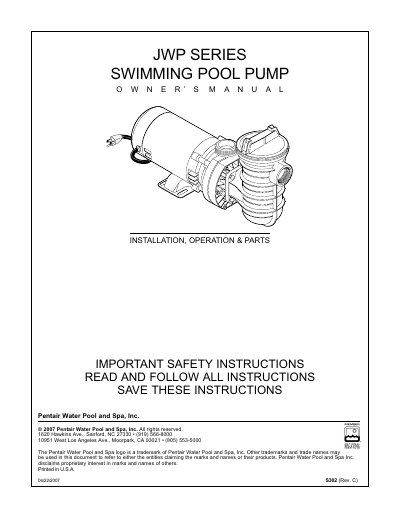

This document is a user manual for the JWP series swimming pool pump. It introduces the safety instructions, installation, electrical connection, operation, storage and maintenance of the product.
This manual provides instructions for the installation, operation, and maintenance of the Pentair JWP Series swimming pool pump. It includes critical safety information regarding pressure testing, electrical grounding, and motor operation temperatures. The document outlines proper installation procedures for self-priming pumps, including placement relative to water levels and pipe support requirements.
| Test Water Pressure Limit | less than 25 PSI |
|---|---|
| Test Water Temperature Limit | less than 100° F |
| Test Duration Limit | 24 hours |
| Cooling Time Before Handling | 20 minutes |
| Suction Pipe Minimum Size | pump suction connection |
The water pressure for the test must be less than 25 PSI.
You must stop the motor and allow it to cool for 20 minutes before handling.
Use Teflon tape or Plasto-Joint Stik for all threaded connections to the pump.
A No. 8 AWG solid copper bonding wire is required for the connection.
