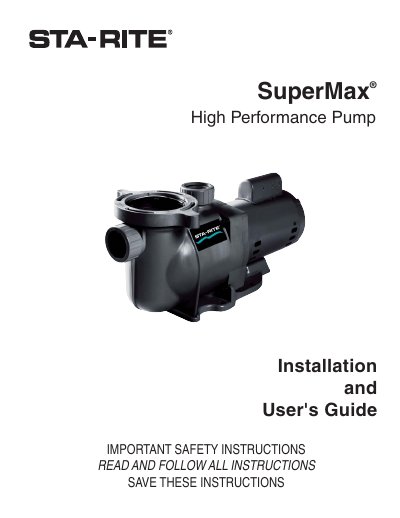

Pentair SuperMax High Performance Pump Installation and User's Guide

About this manual

The Pentair SuperMax High Performance Pump Installation and User's Guide is a comprehensive document designed for qualified pool service professionals. It covers essential safety instructions regarding suction entrapment and hazardous pressure, ensuring the pump is installed and serviced correctly to prevent serious injury or death. The guide details the specific requirements for suction covers and safety systems mandated by the Virginia Graeme Baker Act.

What's inside

• Important Warning and Safety Instructions
• SuperMax Pump Overview
• General Features
• Electrical Requirements
• Wiring Installation
• Maintenance
• Pump Strainer Basket
• Winterizing
• Servicing
• Restart Instructions

Frequently asked questions

What safety hazard does this pump create at pool drains?

The pump produces high levels of suction that can trap adults or children underwater if they come close to a drain.

What is the minimum distance required between suction covers?

Each suction cover must be installed at least three feet apart, measured from the nearest point to nearest point.

What action is required if a drain cover becomes loose or damaged?

You must close the pool or spa immediately, shut off the pump, and keep it closed until an appropriate certified cover is properly installed.
