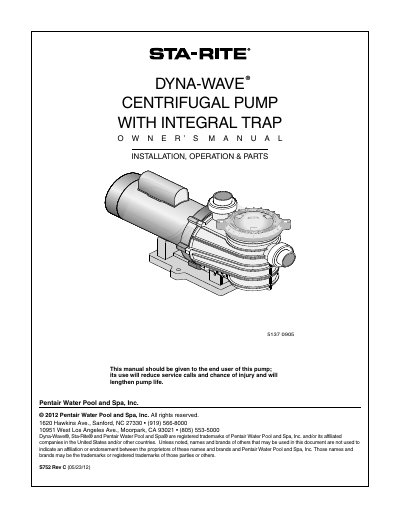

This document is the owner's manual for the DYNA-WAVE centrifugal pump, including installation, operation, and parts information. The centrifugal pump features an integral trap and is designed for use with water features or as a centrifugal pump. It is durable and reliable.
This manual covers the installation, operation, storage, servicing, repair parts list, troubleshooting, and warranty for the Sta-Rite MPRA Series Self-priming Centrifugal Pump. It includes specific safety instructions regarding pressure testing and entrapment protection requirements for pool suction systems.
The document provides detailed guidelines on pump mounting, piping connections (including PVC taping), electrical considerations, and winterizing procedures. It also outlines the necessary suction outlet configurations to prevent hazardous entrapment in swimming pools and spas.
| Max Suction Lift | 10' (3m) |
|---|---|
| Min Pipe Size | 2" (51mm) |
| Max Water Velocity | 1.5 feet per second |
The water temperature for test must be less than 100° F (38° C).
The limit for the test is 24 hours.
Internal ports are 2" NPT and external ports are 3-1/4" Buttress.
