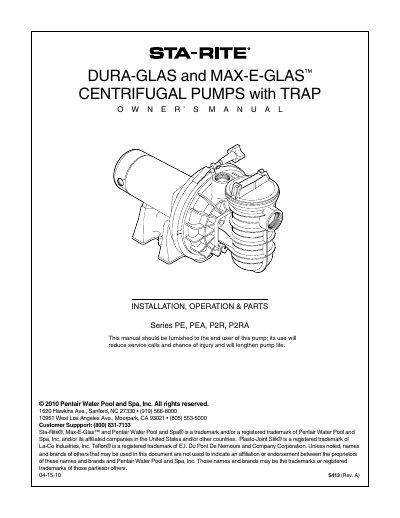

Pentair PE/PEA/P2R/P2RA Series Pump Owner's Manual

This manual introduces the features and characteristics of DURA-GLAS and MAX-E-GLAS™ centrifugal pumps, including installation, operation and maintenance

Brand: STA-RITE
Document type: User Manual
Language: English
Pages: 16
File format: PDF
File size: 338 KB
Published: 12 July, 2012
Updated: 30 September, 2023
Models: P2R, P2RA
MD5 checksum: D964F9866EC310F38ECEA8AFA448288F
PDF: Pentair PE/PEA/P2R/P2RA Series Pump Owner's Manual PDF

About this manual

This manual provides installation, operation, and parts information for the Pentair Water Pool and Spa PE, PEA, P2R, and P2RA series self-priming centrifugal pumps equipped with a trap. It covers safety instructions, pump mounting requirements, electrical connections, and troubleshooting.

What's inside

Safety Instructions
Installation
Electrical
Operation
Storage/Winterizing
Pump Service
Troubleshooting Guide
Repair Parts List

Frequently asked questions

What is the maximum water pressure for testing?

The water pressure for test must be less than 25 PSI (7.5 kg/cm²).

What is the maximum water temperature for testing?

The water Temperature for test must be less than 100°F (38°C).

How long should a pressure test last?

Limit the test to 24 hours.
