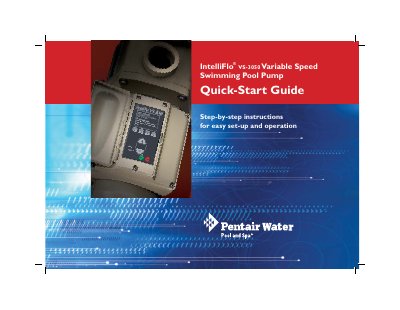

IntelliFlo VS-3050user guide

About this manual

This document is a quick-start guide for the Pentair IntelliFlo VS-3050 Variable Speed Swimming Pool Pump. It provides step-by-step instructions for initial setup, including wiring, plumbing, and priming procedures to ensure proper operation before first use.

The guide details how to operate the control panel to select preset speeds or adjust RPMs between 400 and 3450. It also explains how to save custom speed settings, reset the pump to factory defaults, and interpret warning and alarm conditions indicated by LED flashes.

What's inside

• Before You Get Started
• Wiring/Plumbing
• Control Panel
• Stand-Alone Set-Up
• Priming
• Speed Settings
• Changing and Saving Speeds
• Warning and Alarm Conditions

Frequently asked questions

What is the maximum flow rate and head height the IntelliFlo VS-3050 can handle?

The pump is capable of delivering 160 GPM or 104 feet of head.

What are the four preset pump speeds available on the control panel?

The preset speeds are 750 RPM, 1500 RPM, 2350 RPM, and 3110 RPM.

What specific action must be taken before starting the pump for the first time?

The pump must be primed, and the housing strainer must be filled with water before starting.
