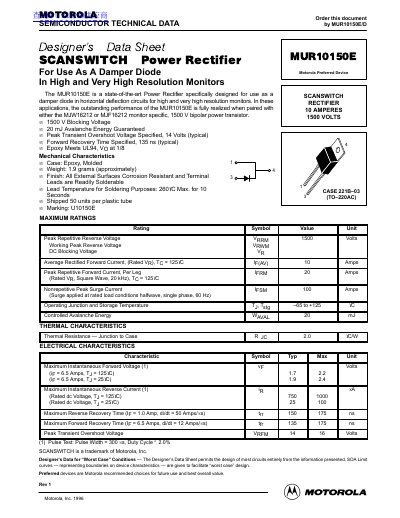

Motorola MUR10150E Power Rectifier Designer's Data Sheet

This file is about MUR10150E, it is a diode product, which can be used in high resolution monitors.

Brand: Motorola
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 70 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: 27558B55EDF34229FAC938633B5301AD
PDF: Motorola MUR10150E Power Rectifier Designer's Data Sheet PDF

About this manual

The document is a Designer's Data Sheet for the MUR10150E, a 10 Ampere, 1500 Volt Power Rectifier specifically engineered for use as a damper diode in horizontal deflection circuits of high and very high resolution monitors. It highlights compatibility with specific bipolar power transistors like the MJW16212 or MJF16212.

What's inside

Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Forward Voltage
Reverse Recovery Time
Package Dimensions

Specifications

Peak Repetitive Reverse Voltage	1500 Volts
Average Rectified Forward Current	10 Amps
Peak Repetitive Forward Current	20 Amps
Nonrepetitive Peak Surge Current	100 Amps
Operating Junction Temperature Range	-65 to +125 °C
Controlled Avalanche Energy	20 mJ

Frequently asked questions

What is the typical peak transient overshoot voltage?

The typical peak transient overshoot voltage is specified at 14 Volts.

What is the maximum average rectified forward current rating for this device?

The device has a rated average rectified forward current of 10 Amps when the case temperature is 125°C.

What is the maximum lead temperature allowed for soldering purposes?

The leads can be exposed to a maximum temperature of 260°C for up to 10 seconds during soldering.

What is the typical peak transient overshoot voltage specified for this rectifier?

The device specifies a typical peak transient overshoot voltage of 14 Volts.
