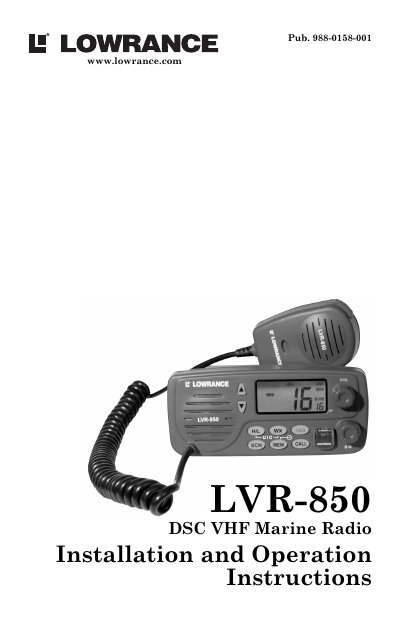

This manual provides instructions on how to install and operate the Lowrance LVR-850 DSC VHF Marine Radio. The radio features DSC functionality for sending and receiving distress calls. It also has other features such as weather forecasting and call logging.
This manual provides comprehensive installation and operation instructions for the Lowrance LVR-850 DSC VHF Marine Radio. It details how to power the unit using a 12-volt system, install the bracket and antenna, and connect auxiliary wires for external speakers or GPS units.
The guide covers basic radio operations including keypad usage, squelch adjustment, weather reception, and making distress calls via DSC (Digital Selective Calling). It also explains advanced features such as MMSI setup, channel selection, scanning, and priority channel usage.
| Operating Voltage | 12-volt electrical system |
|---|---|
| Power Cable Colors | Red positive, Black negative |
| Antenna Separation from Radio | At least three feet |
| Maximum Transmit Time | 50% of total use time |
You must set up your MMSI (Maritime Mobile Service Identity) number before making a call.
Connect the white (+) wire to the speaker's positive lead and the black (–) wire to the negative lead.
You can obtain one by logging onto http://www.boatus.com/mmsi/ and following the instructions.
