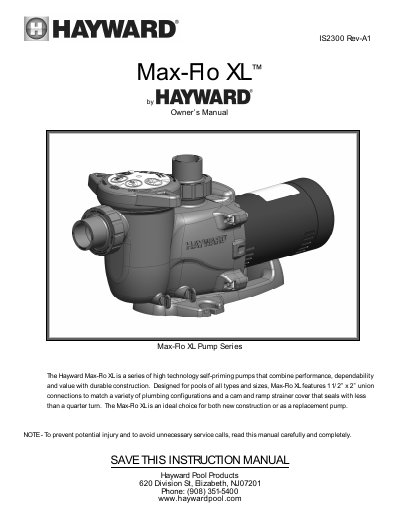

The Hayward Max-Flo XL is a high technology self-priming pump designed for pools of all types and sizes. It features durable construction, 1 1/2" x 2" union connections, and a cam and ramp strainer cover that seals with less than a quarter turn. This manual covers the entire lifecycle of the pump, from initial installation and electrical wiring to startup procedures and routine maintenance.
| Connection Size | 1 1/2" x 2" union connections |
|---|---|
| Strainer Cover Type | Cam and ramp strainer cover |
| Seal Turn Requirement | Less than a quarter turn |
This product should be installed and serviced only by a qualified professional.
The unit must be connected to a supply circuit protected by a ground-fault circuit-interrupter (GFCI).
All components should be inspected frequently and replaced at least every ten years.
