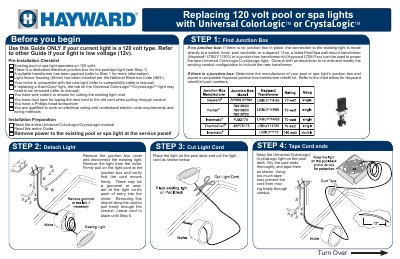

Hayward Universal ColorLogic/CrystaLogic 120V Pool/Spa Light Installation Guide

This document guides the user on how to replace existing 120V pool or spa lights with Universal ColorLogicTM or CrystaLogicTM, and requires a suitable voltage transformer.

Brand: Hayward
Category: Other
Document type: Installation Guide
Language: English
Pages: 2
File format: PDF
File size: 1.1 MB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: B98ECFDFF2CFC3B786F0EA7804A444C6
PDF: Hayward Universal ColorLogic/CrystaLogic 120V Pool/Spa Light Installation Guide PDF

About this manual

This guide provides step-by-step instructions for replacing an existing 120 volt pool or spa light with a Universal ColorLogic or CrystaLogic light. It covers pre-installation checks, finding or installing a junction box, and the physical installation process including cutting and taping cords.

What's inside

Pre-Installation Checklist
Installation Preparation
Find Junction Box
Detach Light
Cut Light Cord
Tape Cord Ends
Snake Cord through Conduit
Install Light to Niches
Install Junction Box Transformer
Install Trim Ring

Frequently asked questions

What voltage must the existing pool light operate on to use this guide?

You should only use this guide if your current light is a 120 volt type.

What tool is required to remove the junction box cover?

You need a Phillips head screwdriver for this step.

Download PDF (1.1 MB)
