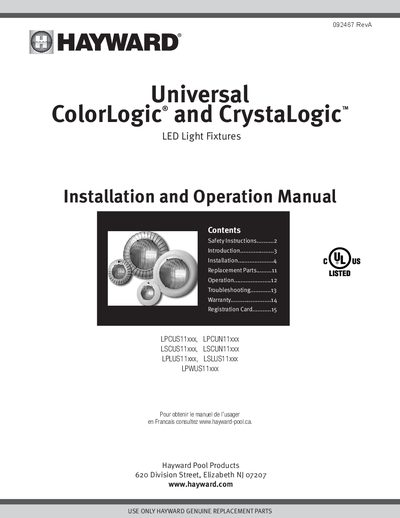

This manual describes the installation and operation of Hayward Universal ColorLogic ® and CrystaLogic TM light fixtures.
This manual provides instructions for installing and operating Hayward Universal ColorLogic and CrystaLogic LED light fixtures. These fixtures use microprocessors to control red, green, blue, and white LEDs to generate colored light and effects. The lights are designed for use in swimming pools and spas and can be installed in Hayward or other manufacturer's light fixture housings.
| LED Lifespan | up to 10 times longer than current incandescent or halogen pool and spa lights |
|---|---|
| Energy Consumption | Uses up to 86% less energy than a typical incandescent pool light |
| Voltage Requirement | 12 volts |
| Installation Depth | not less than 4 in. and no more than 72 in. below the normal water level |
The fixture shall be installed with the top of the lens opening not less than 4 inches below the normal water level of the pool.
Yes, it can be installed upward facing without a rock guard for lighting ponds, fountains, or water falls.
The fixture requires 12 volts, though a 14 volt tap is suggested for transformers with long cord runs.
