This document is about the safety instructions for Hayward ColorLogic/Crystalogic lighting fixtures. These fixtures are UL certified and can be used with virtually all manufacturer's luminaire housings (forming shell) already installed in the field. This luminaire does not require bonding or grounding when powered by a listed pool/spa transformer and installed per the National Electrical Code.

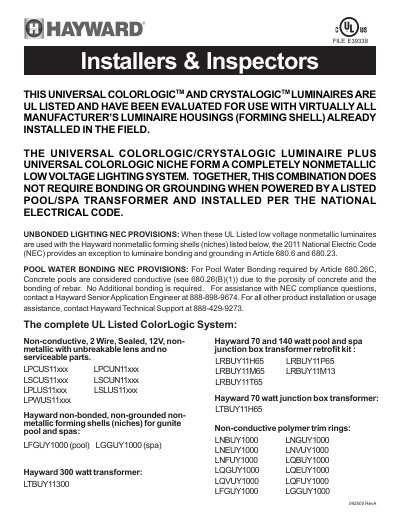

This document describes the Universal ColorLogic™ and Crystalogic™ Luminaires by Hayward. These are UL Listed, nonmetallic, low voltage lighting fixtures designed to be used with virtually all manufacturer's luminaire housings already installed in the field.
The text outlines specific National Electrical Code (NEC) provisions regarding bonding and grounding when these luminaires are paired with Hayward nonmetallic forming shells (niches). It details that no additional bonding or grounding is required for certain configurations powered by listed pool/ISPA transformers.
| Voltage | 12V |
|---|---|
| System Type | Low Voltage Lighting System |
| Grounding Requirement | No Bonding or Grounding Required (with specific shells) |
| Compatible Transformer Wattage | 300 watt, 70 watt, 140 watt |
No additional bonding or grounding is required when powered by a listed pool/ISPA transformer and installed per the National Electrical Code with Hayward nonmetallic forming shells.
Yes, they have been evaluated for use with virtually all manufacturer's luminaire housings already installed in the field.
The system operates at 12V.
