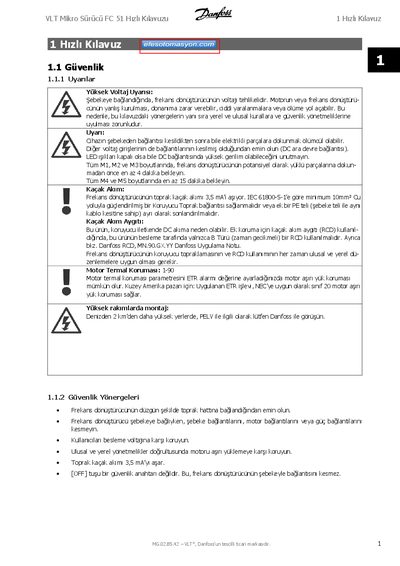

Quick start guide for the Danfoss VLT Mikro FC 51 drive covering safety, installation, wiring and basic programming.
The guide begins with safety instructions, emphasizing high‑voltage hazards, required earthing, leakage‑current limits and the need to follow local regulations before any work. It also details the required waiting times after power removal and the use of RCD protection.
Subsequent sections describe mechanical dimensions, electrical installation, wiring diagrams, control terminal functions, and basic programming using the LCP interface. The document provides parameter tables, cable‑size recommendations and quick‑menu navigation steps for setting up the drive. This manual is written in Turkish.
| Power range | 0.09 kW – 30 kW |
|---|---|
| Supply voltage | 50 V – 999 V (230/400 V typical) |
| Maximum current | 0.01 A – 100 A |
| Cable size (M1‑M3) | up to 4 mm² / 10 AWG |
| Cable size (M4‑M5) | up to 16 mm² / 6 AWG |
Use cables up to 4 mm² (10 AWG) for frames M1‑M3 and up to 16 mm² (6 AWG) for frames M4‑M5.
