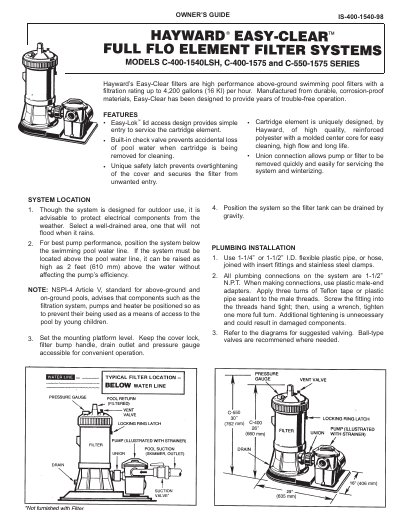

This document is the installation manual of Hay pool filtration system, which introduces the system installation location, water pipe connection and other contents.
This manual provides instructions for the Hayward Easy-Clear filtration system, specifically models like the C-400-1540LSH. It details proper site selection, plumbing connections using specific pipe sizes, and electrical safety requirements. The guide emphasizes protecting electrical components from weather when installed outdoors.
| Filtration Rating | up to 4,200 gallons (16 Kl) per hour |
|---|---|
| Pipe Size | 1-1/4 "or 1-1/2 "I.D. |
| Connection Type | 1-1/2 " N.P.T. |
The chlorine level should be checked at least once a day using a suitable test kit.
Clean or replace the filter cartridge when pressure rises 7-10 psi above starting pressure.
