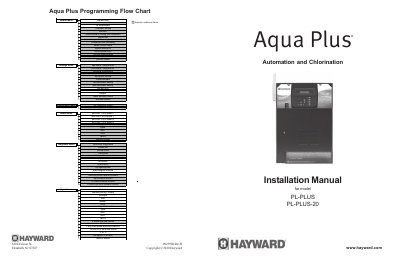

This manual introduces the programming flowchart of Aqua Plus PL-PLUS PL-PLUS-20, including day and time, water temperature, air temperature, chlorination setting, salt level, pump running reason, inspect cell reason, high speed running reason, countdown remaining time, heater control status, system manual off, check system error, filter, vsp speed/reason, lights/aux speed/reason, pH/ORP levels
The document provides a comprehensive guide for installing the Hayward Aqua Plus Automation and Chlorination system. It details preparation steps including water chemistry requirements and equipment mounting instructions.
Subsequent sections cover plumbing connections, electrical wiring specifications (including grounding and bonding), system configuration via the control center menus, and final startup procedures with checkout checks.
| Warranty Period (Residential) | three (3) years |
|---|---|
| Warranty Period (Commercial) | one (1) year |
Hayward warrants its products to be free of defects in materials and workmanship for a period of three years.
To enter service mode, push the SERVICE button once on the main unit keypad.
