The IR2128 is a high voltage, high speed power MOSFET and IGBT driver. It features a floating channel, tolerance to negative transient voltage, gate drive supply range of 10 to 20V, undervoltage lockout, and 5V Schmitt-triggered input logic. The IR2128 can be used to drive an N-channel power MOSFET or IGBT in the high side or low side configuration, operating up to 600V.

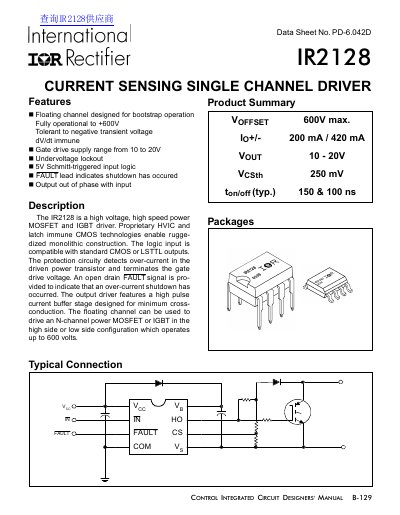

The International Rectifier IR2128 is a high voltage, high speed power MOSFET and IGBT driver designed for applications requiring current sensing. It utilizes proprietary HVIC and latch immune CMOS technologies to provide ruggedized monolithic construction. The device features a floating channel designed for bootstrap operation, fully operational to +600V, and is tolerant to negative transient voltage.
| Max Voltage | 600V |
|---|---|
| Gate drive supply range | 10 to 20V |
| Turn-Off Fall Time | 40 ns |
| Package Types | 8 Lead PDIP / SO-8 |
The device is fully operational to +600V.
The gate drive supply range is from 10 to 20V.
Yes, it is a current sensing single channel driver that detects over-current in the driven power transistor.
