The document describes the features and characteristics of the IR2127/IR2128/IR21271(S) high voltage, high speed power MOSFET and IGBT driver. The driver has a floating channel designed for bootstrap operation, fully operational to +600V, and tolerant to negative transient voltage. It has an application-specific gate drive range for motor drive and automotive applications. It supports undervoltage lockout and is compatible with 3.3V, 5V, and 15V input logic. The FAULT lead indicates shutdown has occurred. The output is in phase with the input for IR2127/IR21271 and out of phase for IR2128. It is a current sensing single channel driver.

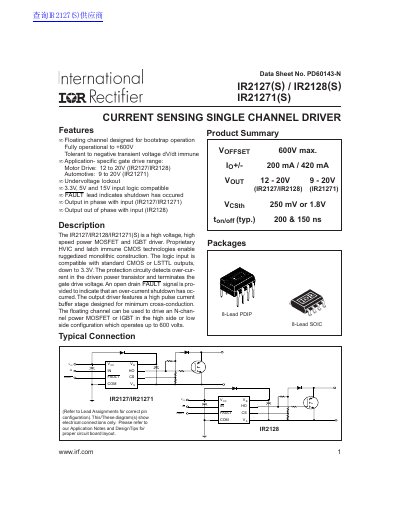

This document is a technical datasheet for the International Rectifier IR2127(S), IR2128(S), and IR21271(S) devices. These are high-speed power MOSFET and IGBT drivers designed with proprietary HVIC and latch immune CMOS technologies. The devices feature floating channels suitable for bootstrap operation, tolerating up to +600V and negative transient voltages.
| High Side Floating Supply Voltage (Max) | 625 V |
|---|---|
| Turn-On Propagation Delay (Typ) | 200 ns |
| Logic Input Voltage Compatibility | 3.3V to 15V |
The absolute maximum rating for the high side floating supply voltage (VB) is 625 V.
The device supports 3.3V, 5V, and 15V input logic compatible signals.
Yes, an open drain FAULT signal is provided to indicate that an over-current shutdown has occurred.
