The MC74AC153/74ACT153 is a high-speed dual 4-input multiplexer with common select inputs and individual enable inputs for each section. It can select two lines of data from four sources. The two buffered outputs present data in the true (non-inverted) form. In addition to multiplexer operation, the MC74AC153/ 74ACT153 can act as a function generator and generate any two functions of three variables.

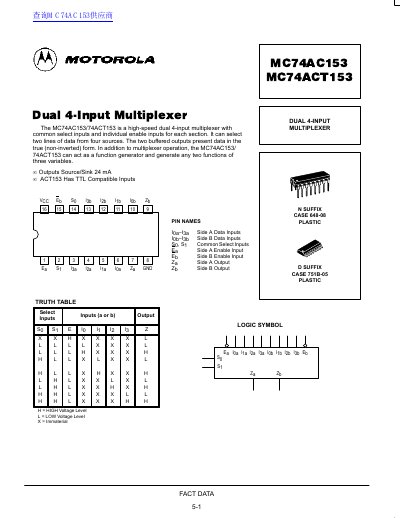

This document provides technical specifications for the Motorola MC74AC153 and MC74ACT153, which are high-speed dual 4-input multiplexers. These devices feature common select inputs and individual enable inputs for each section, allowing them to select two lines of data from four sources. The outputs present data in the true (non-inverted) form.
| Outputs Source/Sink Current | 24 mA |
|---|---|
| DC Supply Voltage Range | -0.5 to +7.0 V |
| DC Input Voltage Range | -0.5 to Voc +0.5 V |
| DC Output Sink/Source Current | +50 mA |
| Storage Temperature | -65 to +150 °C |
| Operating Ambient Temperature | -40 to +85 °C |
| Input Capacitance | 45 pF |
| Power Dissipation Capacitance | 65 pF |
It is a high-speed dual 4-input multiplexer that can select two lines of data from four sources.
Yes, in addition to multiplexer operation, it can act as a function generator and generate any two functions of three variables.
The device is available in Plastic DIP (N Suffix) and Plastic SOIC (D Suffix) packages.
