This document describes the features and characteristics of the EC10DS1, including its miniature size, surface mount device, high surge capability, low forward voltage drop, and low reverse leakage current.

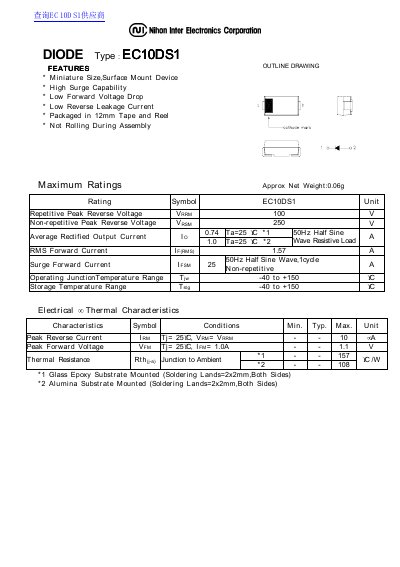

This document is a datasheet for the EC10DS1, a miniature size surface mount device (SMD) diode manufactured by Nihon Inter Electronics Corporation. Key features include high surge capability, low forward voltage drop, and low reverse leakage current.
The component is packaged in 12mm tape and reel to prevent rolling during assembly. The datasheet provides maximum ratings such as a repetitive peak reverse voltage of 100V and an average rectified output current of 1.0A.
| Repetitive Peak Reverse Voltage (VRRM) | 100 V |
|---|---|
| Non-repetitive Peak Reverse Voltage (VRSM) | 250 V |
| Average Rectified Output Current (IO) | 1.0 A |
| Forward Current (IFams) | 1.57 A |
| Surge Forward Current (Irsm) | 25 A |
| Operating Junction Temperature Range (Tjw) | -40 to +150 °C |
| Peak Forward Voltage (Vrm) | 1.1 V |
The maximum repetitive peak reverse voltage is 100 V.
The operating junction temperature range is from -40 to +150 °C.
The approximate net weight is 0.06g.
