EC10QS04 is a surface mount diode with a rated voltage of 40V and a maximum rating of 45V. It features a small size, low forward voltage drop, low power loss, and high efficiency. It also has high surge capability and can be used in applications from 30V to 100V.

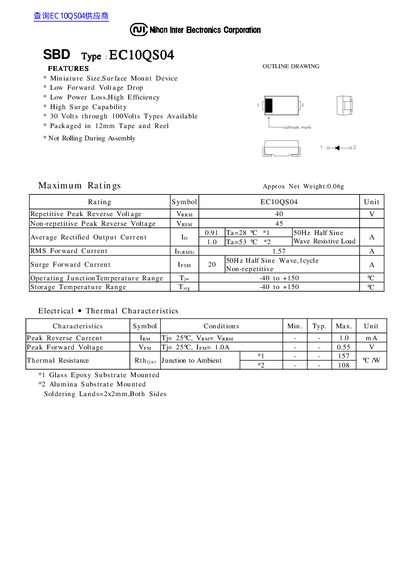

This document is a datasheet for the EC10QS04 Surface Mount Bridge Rectifier (SBD) manufactured by Nihon Inter Electronics Corporation. The device is designed as a miniature surface mount component with features including low forward voltage drop, low power loss, and high efficiency.
| Repetitive Peak Reverse Voltage | 40 V |
|---|---|
| Non-repetitive Peak Reverse Voltage | 45 V |
| Average Rectified Output Current | 1.0 A |
| Surge Forward Current | 20 A |
| Operating Junction Temperature Range | -40 to +150 °C |
| Peak Reverse Current | 1.0 mA |
| Peak Forward Voltage | 0.55 V |
The maximum repetitive peak reverse voltage rating is 40 V.
The device operates within a junction temperature range of -40 to +150 °C.
The maximum average rectified output current is 1.0 A.
