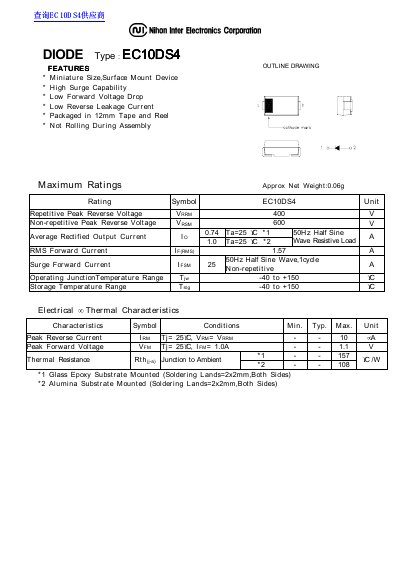

Nihon Inter Electronics EC10DS4 Diode Datasheet

EC10DS4 is a high surge capability Schottky diode with miniature size, low forward voltage drop and low reverse leakage current.

Brand: Nikon
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 51 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 552F06B9C4183FB49A5DBEFD1F31ECF5
PDF: Nihon Inter Electronics EC10DS4 Diode Datasheet PDF

About this manual

This document is a datasheet for the EC10DS4 diode manufactured by Nihon Inter Electronics. It highlights key features such as miniature size, surface mount device (SMD) packaging, high surge capability, and low forward voltage drop. The diode is packaged in 12mm tape and reel to ensure it does not roll during assembly.

What's inside

Features
Maximum Ratings
Electrical Characteristics
Thermal Characteristics
Outline Drawing
Forward Current vs. Voltage
Forward Power Dissipation
Surge Current Ratings

Specifications

Repetitive Peak Reverse Voltage	400 V
Non-repetitive Peak Reverse Voltage	600 V
Surge Forward Current	25 A
Operating Junction Temperature Range	-40 to +150 °C
Packaging Type	12mm Tape and Reel

Frequently asked questions

What is the peak forward voltage drop?

The typical peak forward voltage is 1.1 V at 1.0 A and 25°C.

What is the thermal resistance from junction to ambient?

The thermal resistance is 150 °C/W when mounted on a glass epoxy substrate.
