The MAX1060/MAX1064 are low-power, 10-bit analog-to-digital converters (ADCs) featuring a successive-approximation ADC, automatic power-down, fast wake-up, internal reference voltage, and high-speed parallel interface. They operate with a single +5V analog supply and can interface directly with a +2.7V to +5.5V digital supply. These converters are ideal for battery-powered and data acquisition applications or circuits with demanding power consumption and space requirements.

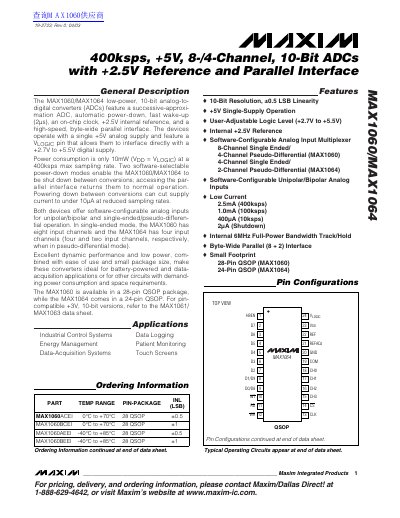

The document describes the MAX1060/MAX1064 family of low-power, 10-bit analog-to-digital converters (ADCs). These devices feature a successive-approximation architecture with automatic power-down capabilities and an on-chip clock. They operate with a single +5V analog supply and include a high-speed, byte-wide parallel interface.
| Resolution | 10 Bits |
|---|---|
| Sampling Rate | 400ksps max |
| Power Consumption (Shutdown) | 2uA |
| Full-Power Bandwidth | 6 MHz |
| Package Type (MAX1060) | 28-pin QSOP |
| Package Type (MAX1064) | 24-pin QSOP |
The devices can operate at a maximum sampling rate of 400ksps.
The supply current drops to under 2uA when the device is shut down.
