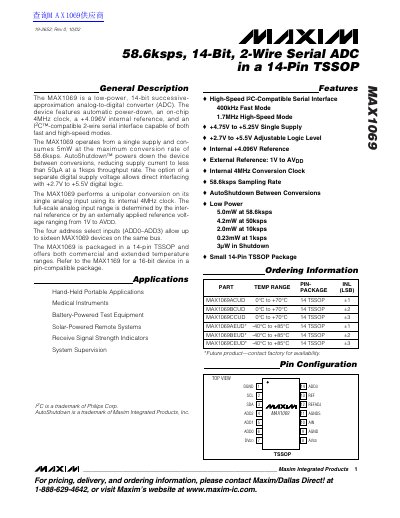

The MAX1069 is a low-power, 14-bit successive- approximation analog-to-digital converter (ADC).
The MAX1069 is a low-power, 14-bit successive-approximation analog-to-digital converter (ADC). The device features automatic power-down, an on-chip 4MHz clock, a +4.096V internal reference, and an I2C-compatible 2-wire serial interface capable of both fast and high-speed modes.
The MAX1069 operates from a single supply and consumes 5mW at the maximum conversion rate of 58.6ksps. AutoShutdown powers down the device between conversions, reducing supply current to less than 50uA at a 1ksps throughput rate.
| Resolution | 14 Bits |
|---|---|
| Sampling Rate | 58.6ksps |
| Internal Reference Voltage | +4.096V |
| Full-Power Bandwidth | 4 MHz |
| Package Type | 14-Pin TSSOP |
The device features a sampling rate of 58.6ksps.
Yes, it features a +4.096V internal reference.
It consumes 5mW at the maximum conversion rate of 58.6ksps.
