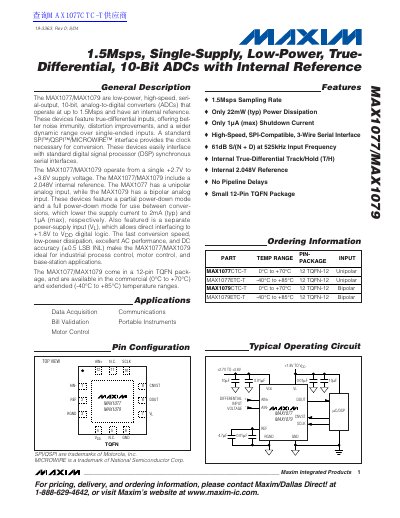

The MAX1077/MAX1079 are low-power, high-speed, serial-output, 10-bit, analog-to-digital converters (ADCs) that operate at up to 1.5Msps and have an internal reference. These devices feature true-differential inputs, offering better noise immunity, distortion improvements, and a wider dynamic range over single-ended inputs. A standard SPI™/QSPI™/MICROWIRE™ interface provides the clock necessary for conversion. These devices easily interface with standard digital signal processor (DSP) synchronous serial interfaces. The MAX1077/MAX1079 operate from a single +2.7V to +3.6V supply voltage. The MAX1077/MAX1079 include a 2.048V internal reference. The MAX1077 has a unipolar analog input, while the MAX1079 has a bipolar analog input. These devices feature a partial power-down mode and a full power-down mode for use between conversions, which lower the supply current to 2mA (typ) and 1µA (max), respectively. Also featured is a separate power-supply input (VL), which allows direct interfacing to +1.8V to VDD digital logic. The fast conversion speed, low-power dissipation, excellent AC performance, and DC accuracy (±0.5 LSB INL) make the MAX1077/MAX1079 ideal for industrial process control, motor control, and base-station applications. The MAX1077/MAX1079 come in a 12-pin TQFN package, and are available in the commercial (0°C to +70°C) and extended (-40°C to +85°C) temperature ranges.
The MAX1077 and MAX1079 are low-power, high-speed, serial-output, 10-bit analog-to-digital converters (ADCs) that operate at up to 1.5Msps. These devices feature true-differential inputs, offering better noise immunity and a wider dynamic range over single-ended inputs. They include a 2.048V internal reference and operate from a single +2.7V to +3.6V supply voltage.
| Sampling Rate | 1.5Msps |
|---|---|
| Resolution | 10 Bits |
| Power Dissipation | 22mW (typ) |
| Shutdown Current | 1pA (max) |
| Supply Voltage | +2.7V to +3.6V |
| Internal Reference | 2.048V |
| Relative Accuracy | +0.5 LSB |
| Full-Power Bandwidth | 15 MHz |
The maximum throughput rate is 1.5 Msps.
The MAX1077/MAX1079 operate at up to 1.5Msps.
Typical power dissipation is only 22mW.
