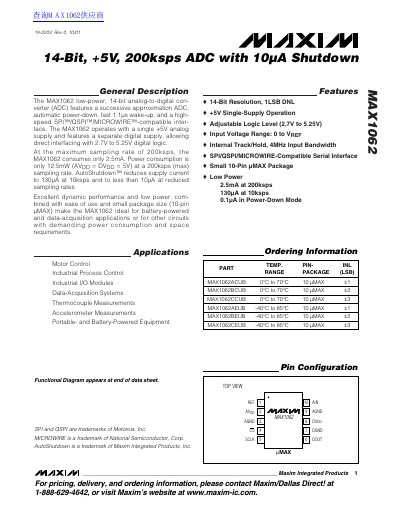

The MAX1062 is a low-power, 14-bit analog-to-digital converter (ADC) that features a successive approximation ADC, automatic power-down, fast 1.1µs wake-up, and a high-speed SPI/QSPI/MICROWIRE-compatible interface. It operates with a single +5V analog supply and features a separate digital supply, allowing direct interfacing with 2.7V to 5.25V digital logic. At the maximum sampling rate of 200ksps, the MAX1062 consumes only 2.5mA. Power consumption is only 12.5mW (AVDD = DVDD = 5V) at a 200ksps (max) sampling rate. AutoShutdown™ reduces supply current to 130µA at 10ksps and to less than 10µA at reduced sampling rates. Excellent dynamic performance and low power, combined with ease of use and small package size (10-pin µMAX) make the MAX1062 ideal for battery-powered and data-acquisition applications or for other circuits with demanding power consumption and space requirements.
The MAX1062 is a low-power, 14-bit successive approximation analog-to-digital converter (ADC) featuring automatic power-down and a high-speed SPI/QSPI/MICROWIRE-compatible interface. It operates with a single +5V analog supply and allows direct interfacing with digital logic ranging from 2.7V to 5.25V.
The device is designed for applications requiring excellent dynamic performance and low power consumption, such as motor control, industrial process control, data-acquisition systems, and thermocouple measurements. It features a small 10-pin UMAX package.
| Resolution | 14 Bits |
|---|---|
| Sampling Rate | 200ksps |
| Package Type | 10-Pin UMAX |
| Input Bandwidth | 4MHz |
The maximum sampling rate is 200ksps.
It consumes only 2.5mA when operating at 200ksps.
The input voltage range extends from 0 to VREF.
