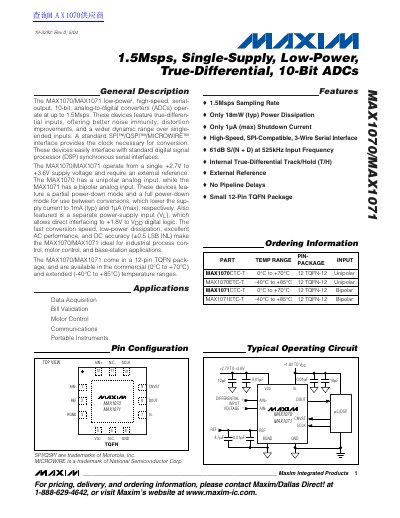

The MAX1070/MAX1071 are low-power, high-speed, serial-output, 10-bit analog-to-digital converters (ADCs) that operate at up to 1.5Msps. These devices feature true-differential inputs, offering better noise immunity, distortion improvements, and a wider dynamic range over single-ended inputs. A standard SPI™/QSPI™/MICROWIRE™ interface provides the clock necessary for conversion. These devices easily interface with standard digital signal processor (DSP) synchronous serial interfaces. The MAX1070/MAX1071 operate from a single +2.7V to +3.6V supply voltage and require an external reference. The MAX1070 has a unipolar analog input, while the MAX1071 has a bipolar analog input. These devices feature a partial power-down mode and a full power-down mode for use between conversions, which lower the supply current to 1mA (typ) and 1µA (max), respectively. Also featured is a separate power-supply input (VL), which allows direct interfacing to +1.8V to VDD digital logic. The fast conversion speed, low-power dissipation, excellent AC performance, and DC accuracy (±0.5 LSB INL) make the MAX1070/MAX1071 ideal for industrial process control, motor control, and base-station applications. The MAX1070/MAX1071 come in a 12-pin TQFN package, and are available in the commercial (0°C to +70°C) and extended (-40°C to +85°C) temperature ranges.
The MAX1070/MAX1071 are low-power, high-speed, serial-output, 10-bit analog-to-digital converters (ADCs) that operate at up to 1.5Msps. These devices feature true-differential inputs, offering better noise immunity, distortion improvements, and a wider dynamic range over single-ended inputs. A standard SPI/QSPI/MICROWIRE interface provides the clock necessary for conversion, allowing easy interfacing with standard digital signal processor synchronous serial interfaces.
The devices operate from a single +2.7V to +3.6V supply voltage and require an external reference. The MAX1070 has a unipolar analog input, while the MAX1071 has a bipolar analog input. They feature partial and full power-down modes to lower supply current, and a separate power-supply input (VL) allows direct interfacing to +1.8V to Vop digital logic. Available in a 12-pin TQFN package, they are suitable for industrial process control, motor control, and base-station applications.
| Sampling Rate | 1.5Msps |
|---|---|
| Power Dissipation | 18mW (typ) |
| Shutdown Current | 1pA (max) |
| Resolution | 10 Bits |
| Signal-to-Noise Plus Distortion | 61 dB |
| Full-Power Bandwidth | 15 MHz |
| Maximum Throughput Rate | 1.5 Msps |
| Analog Supply Voltage | 2.7V to 3.6V |
| Package | 12-Pin TQFN |
The devices operate at up to 1.5Msps.
The MAX1070 has a unipolar analog input, while the MAX1071 has a bipolar analog input.
The typical power dissipation is 18mW.
The maximum shutdown current is 1pA.
