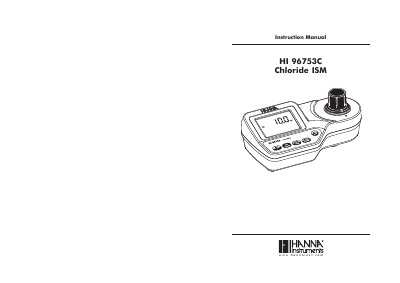

This document is an instruction manual for HI 96753C Chloride ISM, providing specifications, precision and accuracy, principle of operation, and usage instructions.
The HI 96753C is an auto-diagnostic portable microprocessor meter designed to measure chloride content in water and wastewater samples. It features an advanced optical system based on a special Light Emitting Diode (LED) and a narrow band interference filter to ensure accurate and repeatable readings. The instrument is splash waterproof and includes an auto-shut off feature to conserve battery life.
| Range | 0.0 to 20.0 mg/L |
|---|---|
| Resolution | 0.1 mg/L |
| Accuracy | +0.5 mg/L + 6% of reading @ 25°C |
| Light Source | Light Emitting Diode |
| Light Detector | Silicon Photocell with narrow band interference filter @ 466nm |
| Method | Adaptation of the mercury(II) thiocyanate method |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Battery Type | 1x9 volt |
| Dimensions | 192 x 104 x 69 mm (7.6 x 4.1 x 2.7") |
The meter measures chloride content in the 0.0 to 20.0 mg/L (ppm) range.
It uses the CAL CHECK validation function with exclusive HANNA ready-made, NIST traceable standards.
The instrument has an auto-shut off feature that will turn it off after 10 minutes of non-use.
