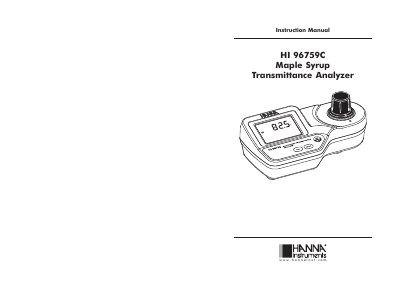

This document is an instruction manual for the HI 96759C Maple Syrup Transmittance Analyzer from Hanna Instruments Inc. The manual includes preliminary examination, general description, abbreviations, significance and use, principle of operation, functional description, errors and warnings, general tips for an accurate measurement, startup, measurement procedure, battery management, battery replacement, accessories, and warranty.
The HI 96759C is an auto-diagnostic portable microprocessor meter designed to measure the percent light transmittance of maple syrup compared to analytical grade glycerol. It features an advanced optical system with a tungsten lamp and a narrow band interference filter to ensure accurate and repeatable readings. The device is splash waterproof and includes an auto-shut off feature to conserve battery life.
| Range | 0.0 to 100.0% Transmittance |
|---|---|
| Resolution | 0.1% Transmittance |
| Accuracy | +3% @ 75.0% Transmittance |
| Light Source | Tungsten lamp |
| Light Detector | Silicon Photocell with narrow band interference filter @ 560nm |
| Battery Type | 1x9 volt |
| Dimensions | 192 x 102 x 67 mm |
| Weight | 290 g |
The primary characteristic for classifying maple syrup is color, which is expressed in percent of light transmission.
The instrument will automatically shut off after 1 hour of non-use in calibration mode.
You should check the preparation of the calibration cuvette as there is too much or not enough light.
